Epoch Timing

What are Epochs?

Epochs are periods of time.

In relation to training models on set actions for brain computer interfaces, it is useful to define epochs by the amount of time-series data before and after a marker has been received indicating a desired classification action has been executed. A selected LSL marker stream is used to send strings which represent unique target training markers. Once data is sliced in to epochs it may be processed for feature extraction, or in some cases passed as raw time-series input, see Passing Custom Feature Extractor classes and Raw time-series for more information on feature extraction.

Setting the globalEpochSettings with the GlobalEpochSettings() class sets the target window length and overlap for the training time windows. It is desirable to have a single global window length that all epochs are sliced to match, this gives a uniform array when passing to the classifier. When in testing mode a having a continuous rolling window of data is sliced to this size and overlapped based on the windowOverlap, see Setting Custom Epoch Times for more info.

Setting Custom Epoch Times

The figure below illustrates when you may have epochs of differing lengths received on the LSL marker stream. A baseline marker may signify an extended period, in this case 10 seconds, and our motor task is only 1 second long. To account for this set customEpochSettings and globalEpochSettings accordingly, note the LSL Marker for baseline should match the key for the customEpochSettings dict. NOTE: when using customEpochSettings all epochs must be defined in the dict, other markers will be ignored, if customEpochSettings is not used all markers on the selected marker stream will be used as a classification type:

gs = GlobalEpochSettings()
gs.tmax = 1 # grab 1 second after marker
gs.tmin = 0 # grabs 0 seconds before marker
gs.splitCheck = False # splits samples between tmin and tmax
gs.windowLength = 1 # window length of 1 s, means all marker timing windows will be 1 second long
gs.windowOverlap = 0.5 # windows overap by 50%, so for a total len
markerSettings = {}
markerSettings["baseline"] = IndividualEpochSetting()
markerSettings["baseline"].splitCheck = False
markerSettings["baseline"].tmin = 0      # time in seconds to capture samples before trigger
markerSettings["baseline"].tmax=  10      # time in seconds to capture samples after trigger
markerSettings["Marker1"] = IndividualEpochSetting()
markerSettings["Marker1"].splitCheck = False
markerSettings["Marker1"].tmin = 0      # time in seconds to capture samples before trigger
markerSettings["Marker1"].tmax=  1      # time in seconds to capture samples after trigger

bci = PyBCI(customEpochSettings=markerSettings, globalEpochSettings=gs)

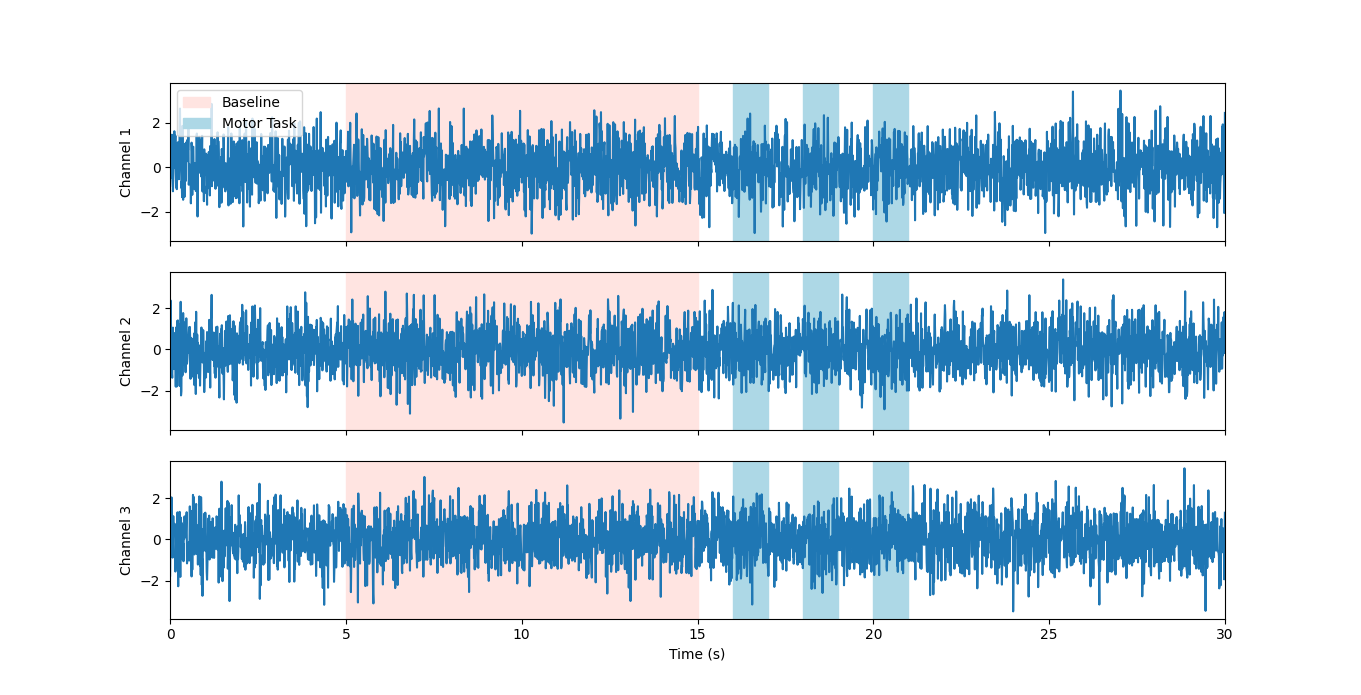

Highlighting these epochs on some psuedo emg data looks like the following:

../_images/example1.png

Overlapping Epoch Windows

By setting splitCheck to True for markerSettings["baseline"].splitCheck and gs.windowOverlap to 0 we can turn one marker into 10 epochs, shown below:

../_images/example1split0.png

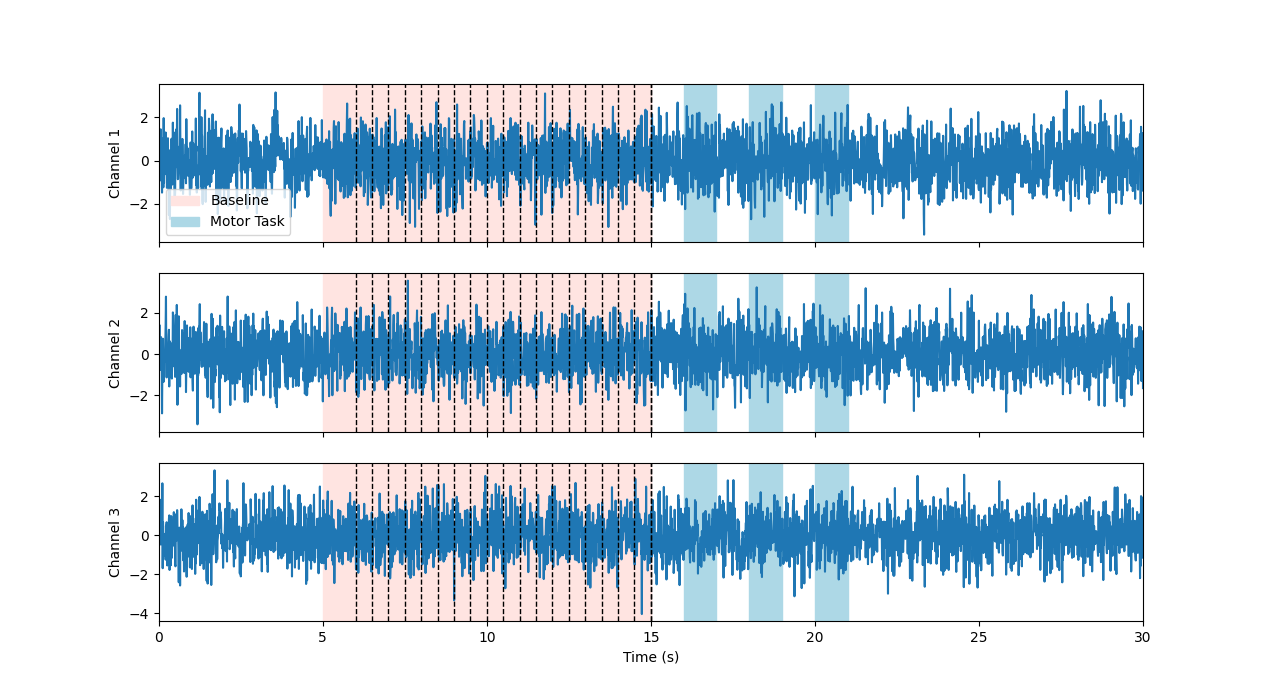

By setting gs.windowOverlap to 0.5 we can overlap 1 second epochs by 50% yielding 19 (2n-1) epochs, shown below:

../_images/example1split50.png

Debugging Timing Errors

When initialising the PyBCI() class set loggingLevel to “TIMING” to time the feature extraction time for each data inlet as well as classification testing and training times. These are the most computationally intensive tasks and will induce the most lag in the the system. Each printed time must be shorter then globalEpochSettings.windowLength * ( 1- globalEpochSettings.windowOverlap ) to minimise delays from input data action to classification output.
